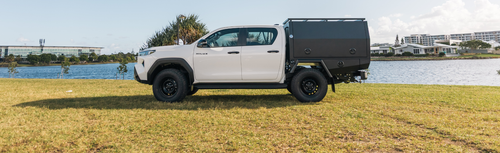

Chassis Mount Canopies
Built tough, built for adventure.
XTS chassis mount canopies sit lower on your vehicle and save around 80Kg of weight. They come loaded with high-end features like flush floor with uni-strut channels, aggressive wheel arches with XTS mudflaps and a large rear trundle drawer. There's also a built-in, stainless steel water tank and 12V pump to provide pressurised water on your travels.
suitable FOR:
HEAVY DUTY
CONSTRUCTION
Built to Australian standards to withstand tough conditions.
CUSTOMISABLE
DESIGN
Tailor your ute tray to your exact needs, maximising functionality and personal style.
SECURE
STORAGE
Keep your tools & equipment safe.
24 MONTH
WARRANTY
Backed by expert customer support.
Discover the Standout Features of XTS CHASSIS MOUNT:
Slide-Out Under Tray Drawers
Convenient storage to access all your gear.
EXTRA-LARGE REAR TRUNDLE DRAWER
1.7m long x 0.9m wide. The optional cover doubles as a handy rear table for convenience.
Internal reinforcing structure
An internal sub-structure reinforces the canopies walls, roof and floor. Built-in uni-strut channels make it versatile and easy to install accessories.
Flush floor with uni-strut channels
Eliminates the need to build a floor raiser, making it extremely versatile. It also comes with uni-strut channels built into the floor to allow for easy installation of internal accessories.
Stainless Steel Piano Hinges
Strong and durable hinges that are protected by rubber on top to create a barrier to water.
Whale Tail Locks
Quality locking mechanism that can be operated with a key and/or a central locking option wired to your vehicle.
CHASSIS MOUNT STANDARD INCLUSIONS:
- Built-in water tank with 12v pump
- Large rear trundle drawer
- Slide-out side lockers
- Aggressive wheel arches with XTS mud flaps
- Powder coated in matt or gloss, black or white
- Built in fuel filler
- Corrosion resistant aluminium plate
- Internal reinforced floor, roof & wall bracing
- Flush floor with uni-strut channels
- Height adjustable gas struts
- Stainless Steel piano hinges
CHASSIS MOUNT OPTIONAL EXTRAS:
- Vinyl wrap on side lockers and canopy doors
- Central Locking
- LED Light Bars
CHASSIS MOUNT : By Vehicle Type
SUITS MOST DUAL CAB UTES

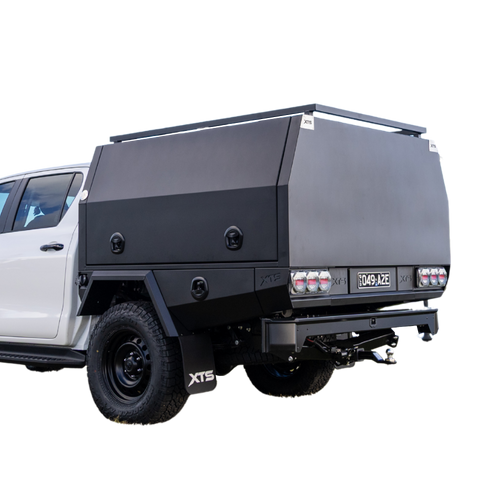

Dual Cab Chassis Mount Canopy
Suits these vehicles:
- Isuzu Dmax
- Toyota Hilux
- Ford Ranger Next Gen
- Ford Ranger PX
- Mazda BT-50
- Nissan Navara
- Holden Colorado
- LDV T-60
- Mitsubushi Triton
- Volkswagen Amarok
- Ssangyong Musso
- GWM Cannon
From
$9,990.00
- 1840mm wide x 860mm high
- 1600mm or 1800mm lengths available
Tested for Work, Trusted for Play
FAQS
Can I install the chassis mount canopy myself or hire someone to do it for me?
Yes absolutely, but it's important to note that whoever does the fitment would need to carry the installation warranty.
What are your canopies made from?
Our trays are designed to be extremely strong without being too heavy. We use a combination of 2.5mm aluminium plate with a steel sub-structure that mounts onto your vehicle.
Do you offer a warranty?
Yes, we offer a full 24 month customer warranty on all products.
What are the colour options?
You can choose between matt black, gloss black, matt white, gloss white or have the canopy doors wrapped in vinyl (additional cost).
When do I pay for my XTS order?
25% deposit when placing the order. A 35% progress payment when order has been produced. The final 40% is due upon pick-up.
Do you offer finance options?
Yes, we have a finance broker that we work with and can assist with your application.
How long does installation take?
In most cases we ask to have your vehicle for two days to allow sufficient time for installation and sensor relocation. Depending on the build, it may be completed sooner.
Do you provide a sensor relocation service?
Yes. We supply relocations kits specific to your vehicle’s make and model.
CHASSIS MOUNT PHOTO GALLERY:

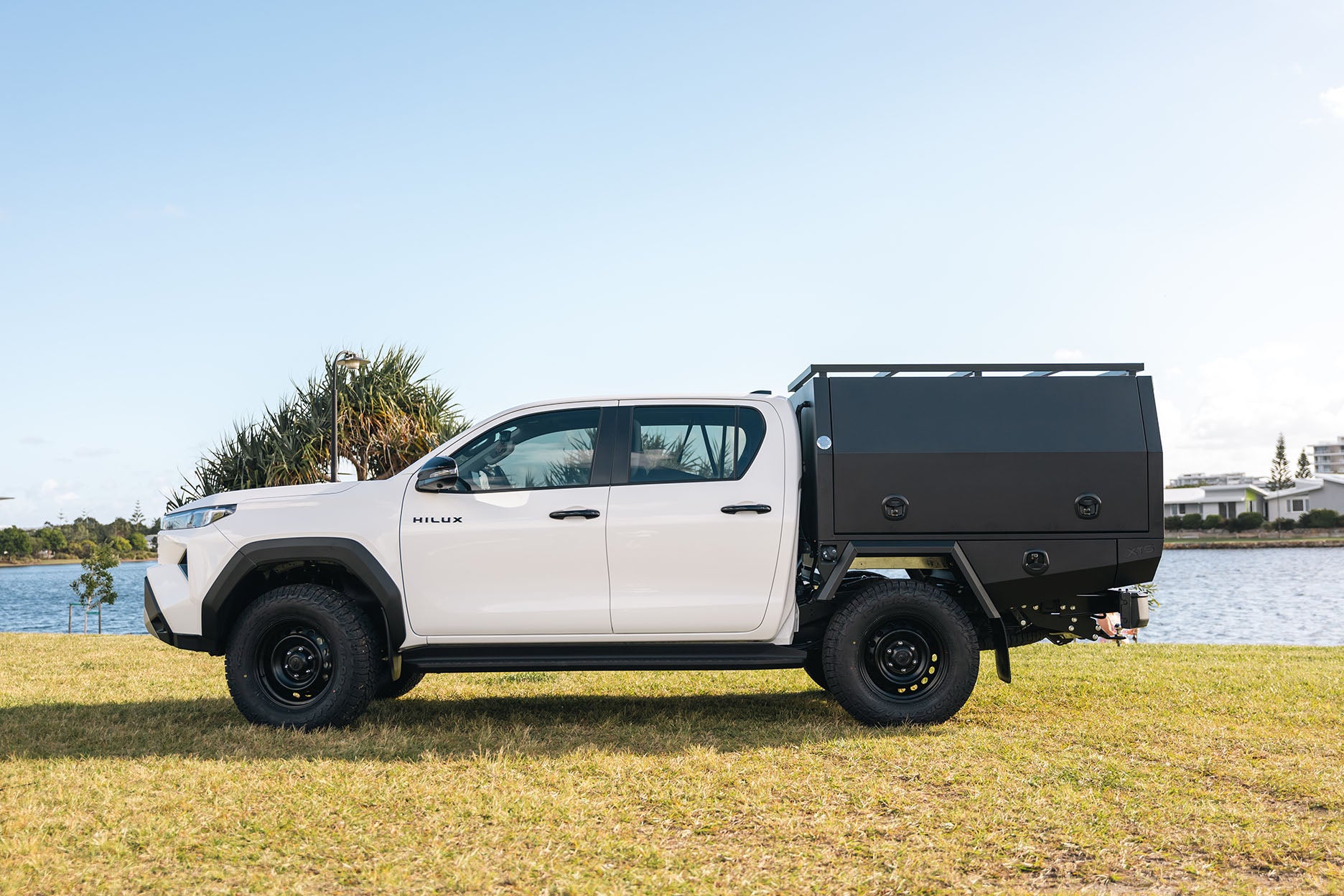

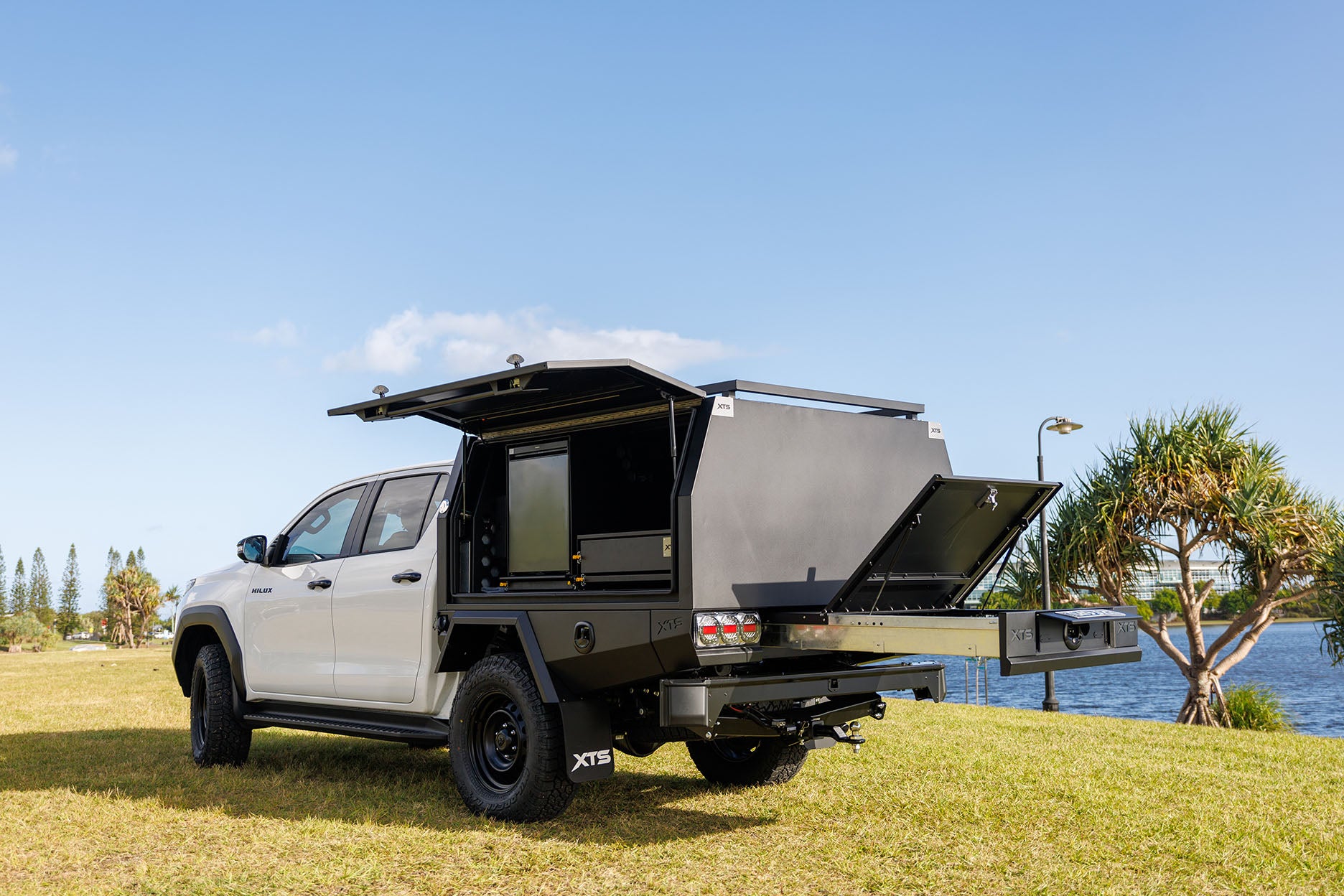

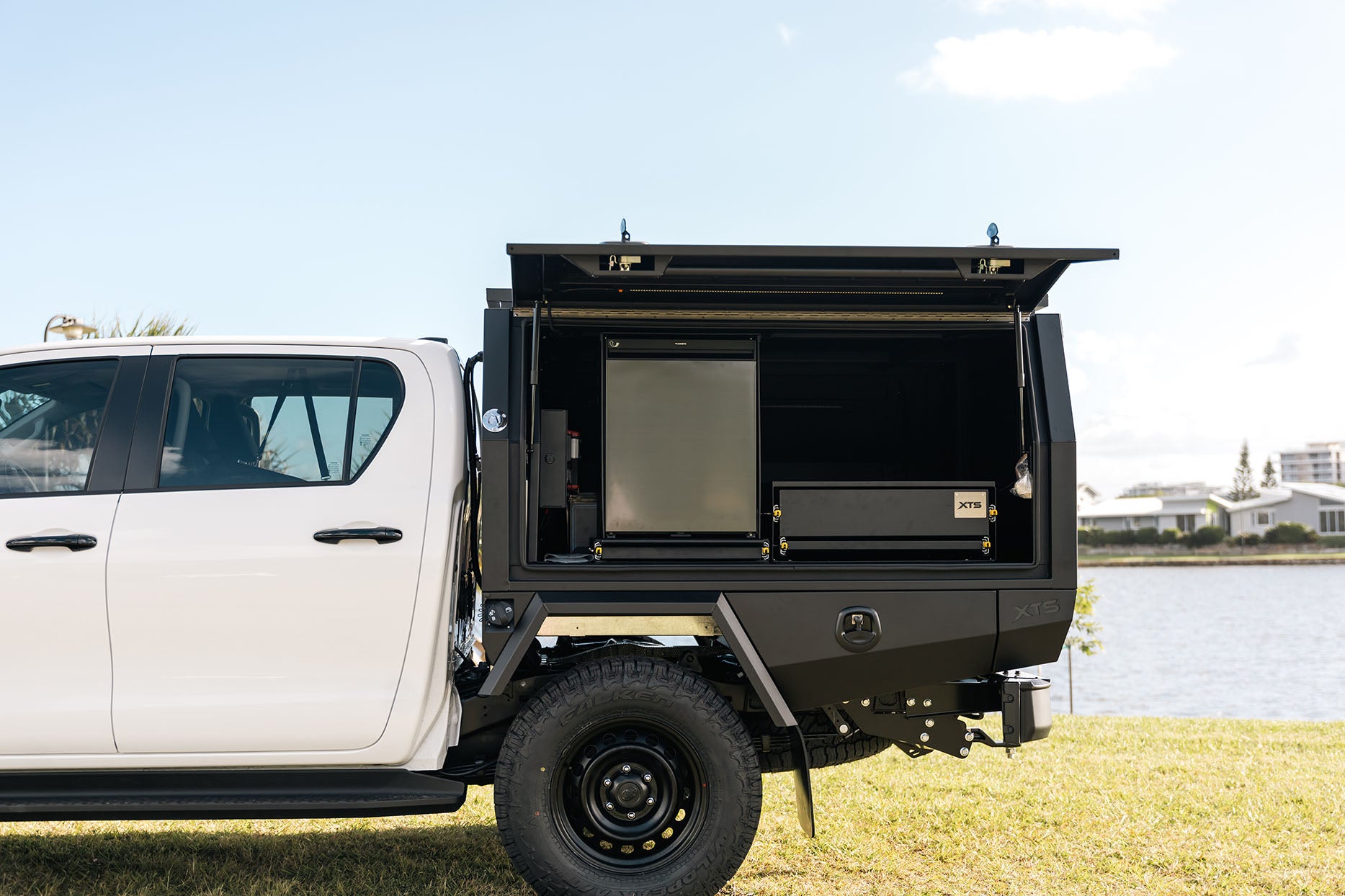

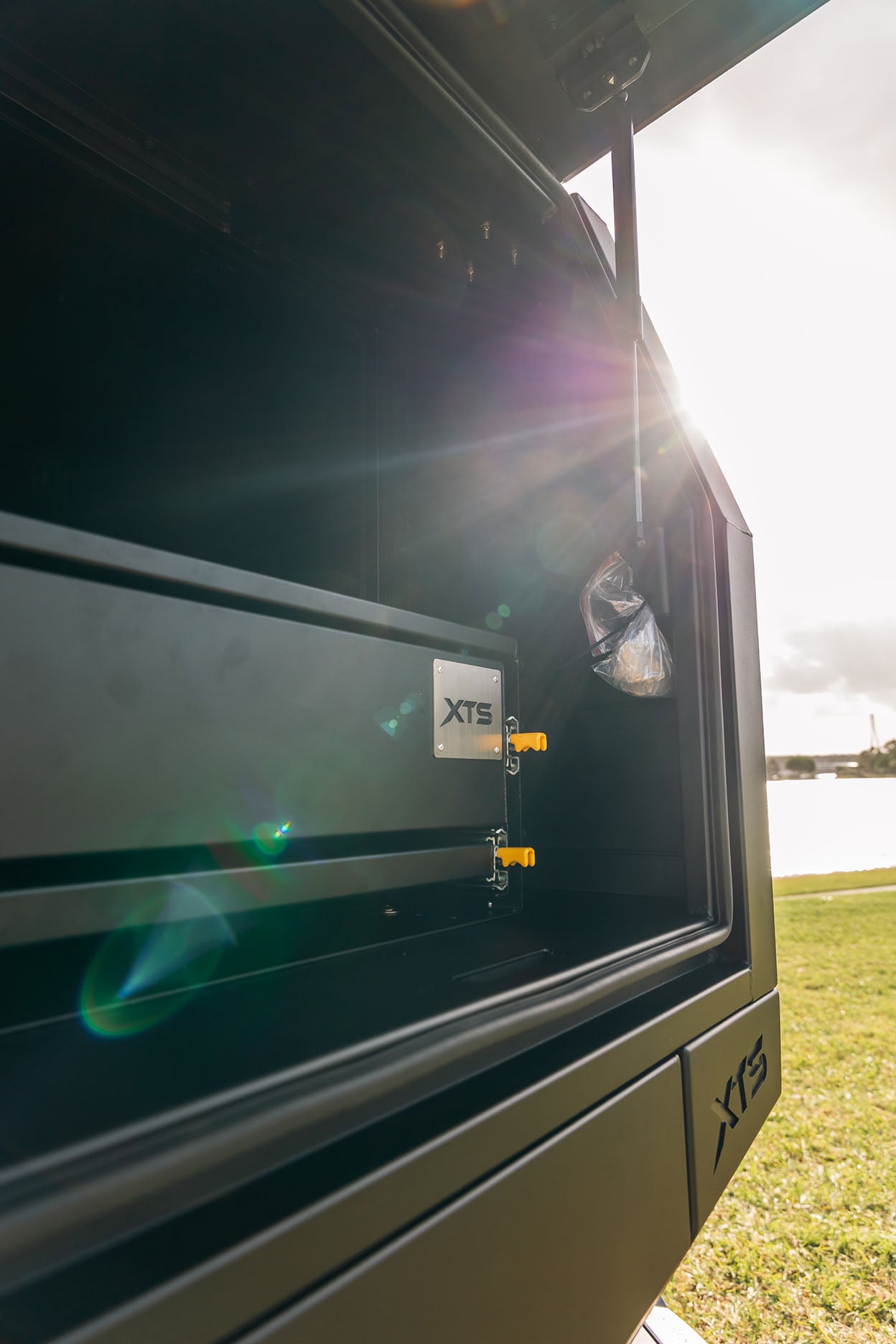

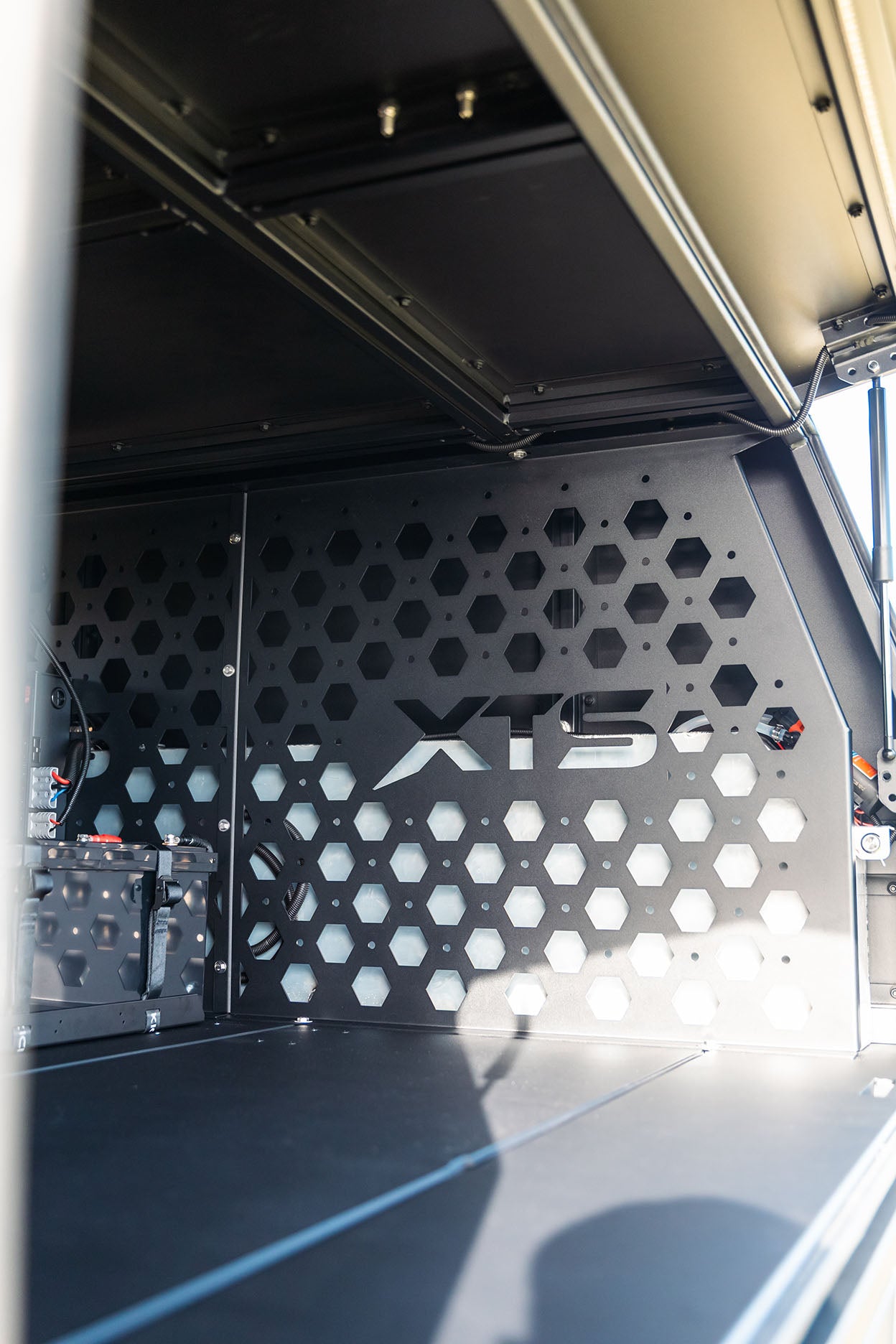

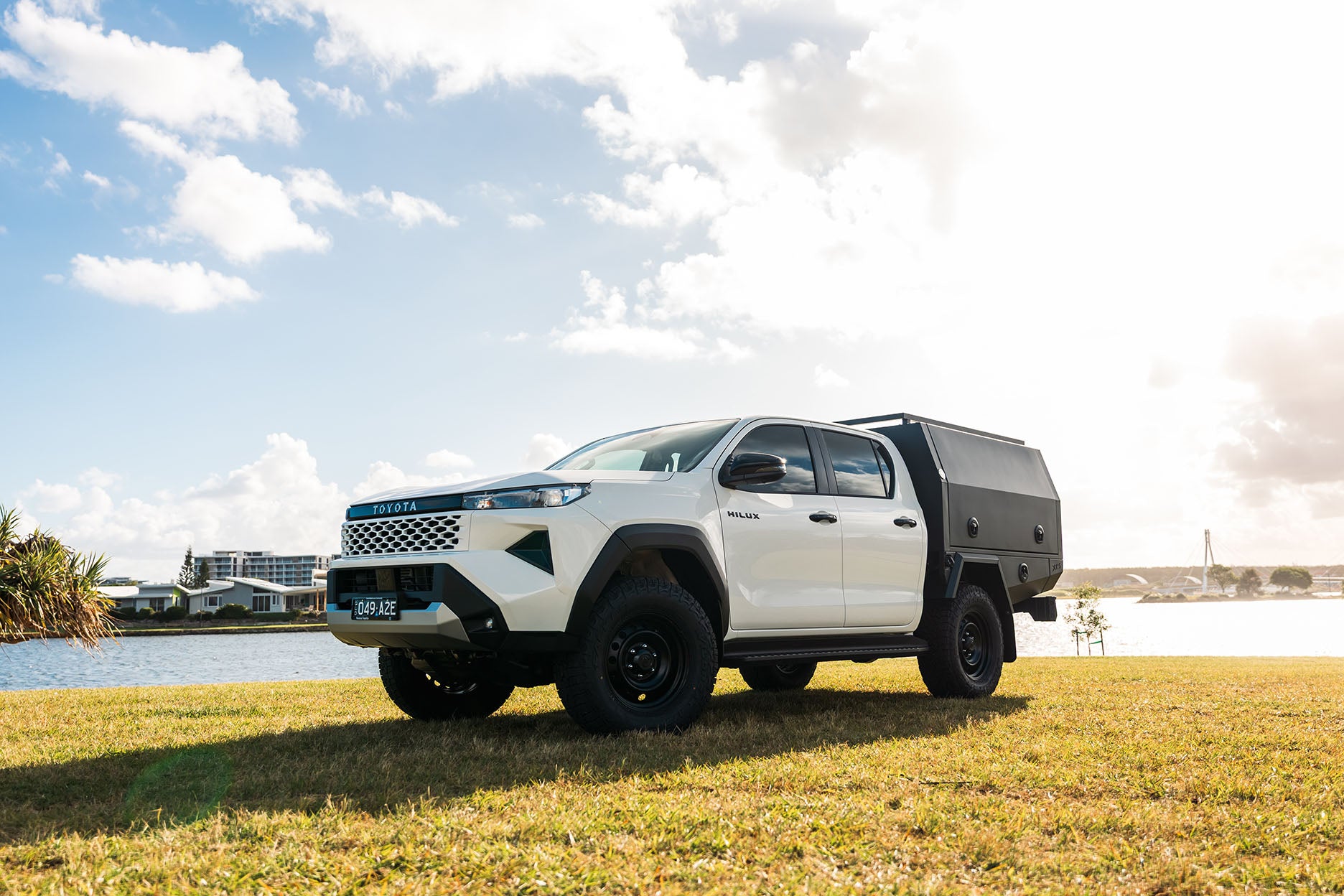

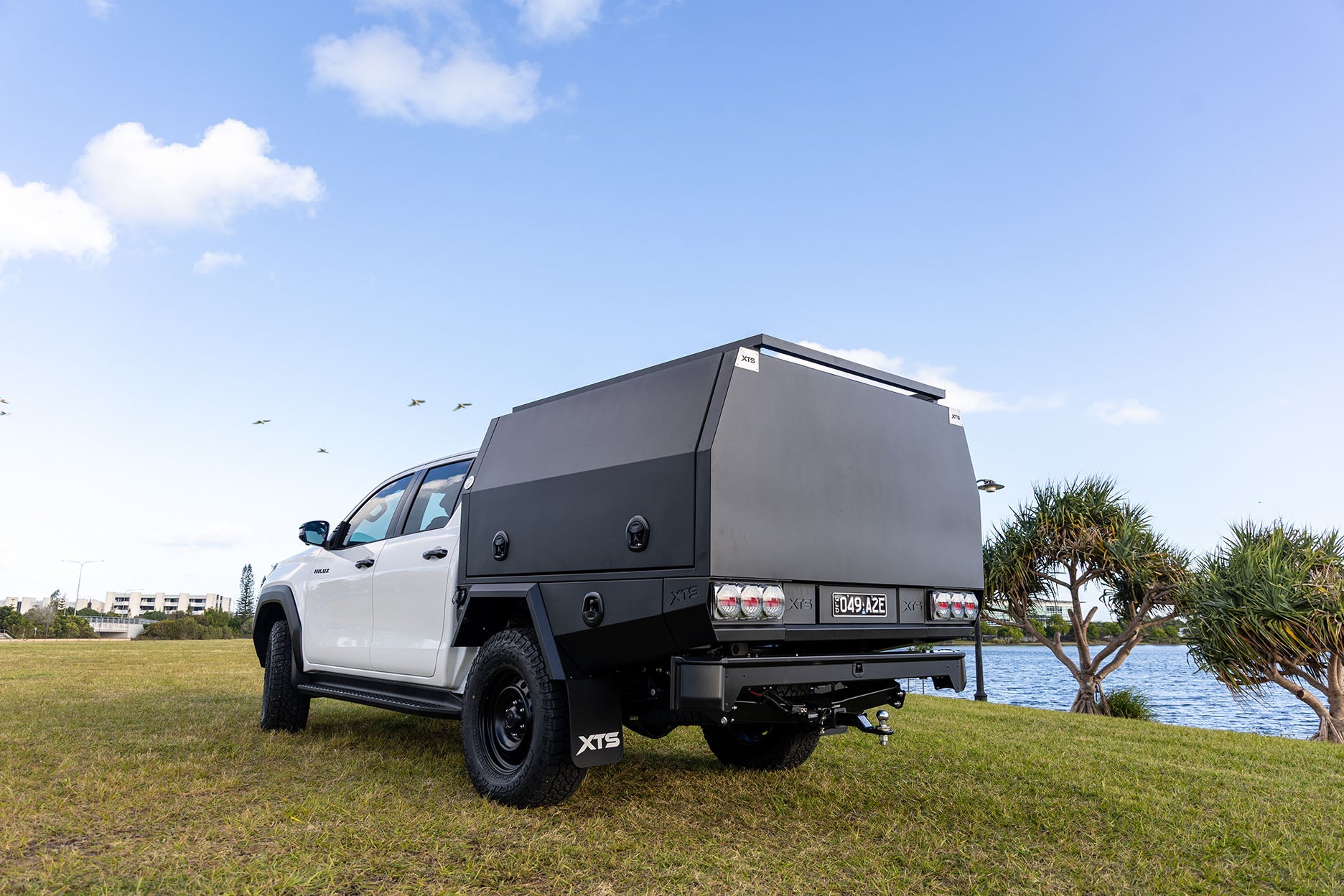

2026 TOYOTA HILUX N90 Dual Cab

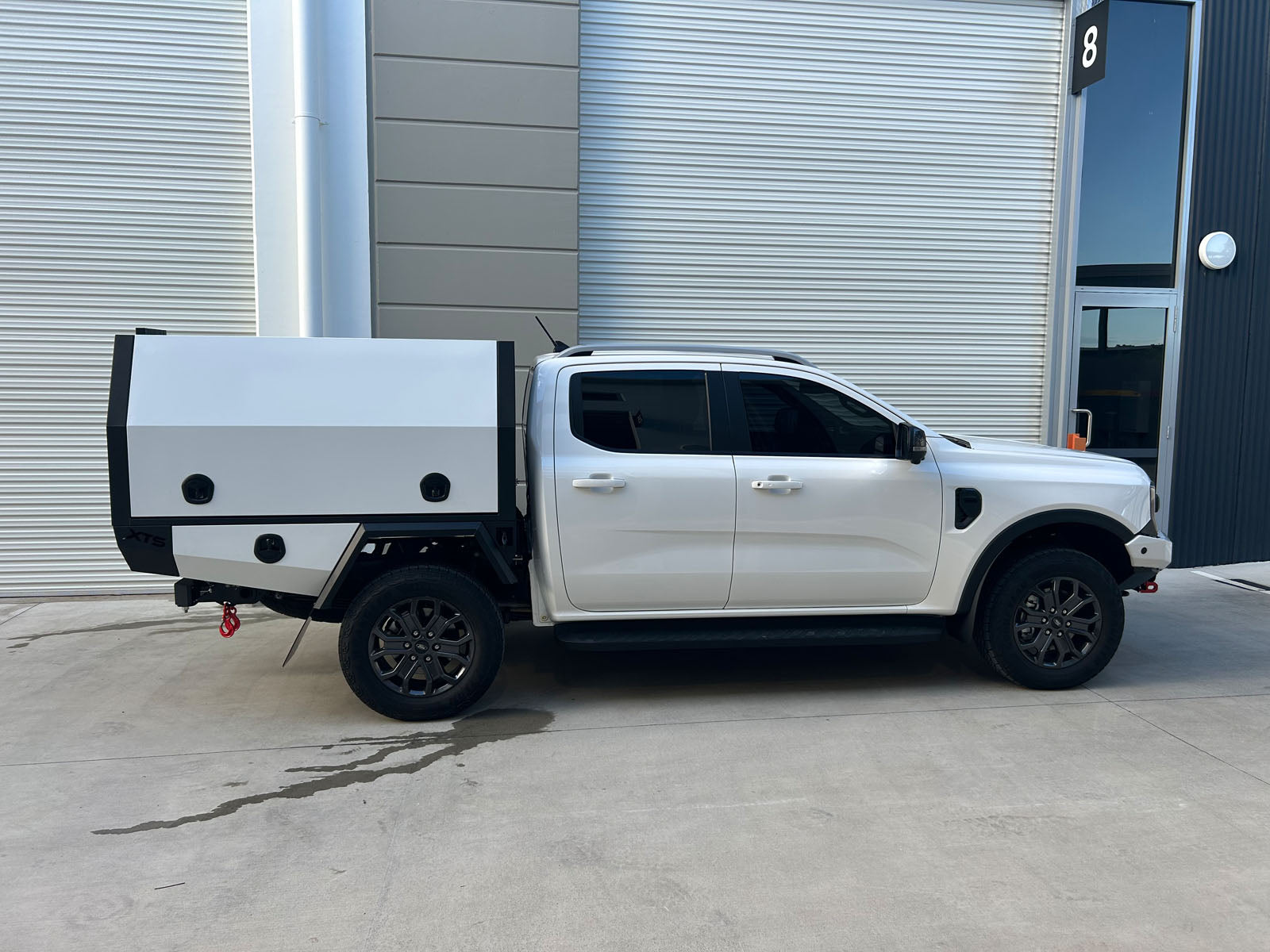

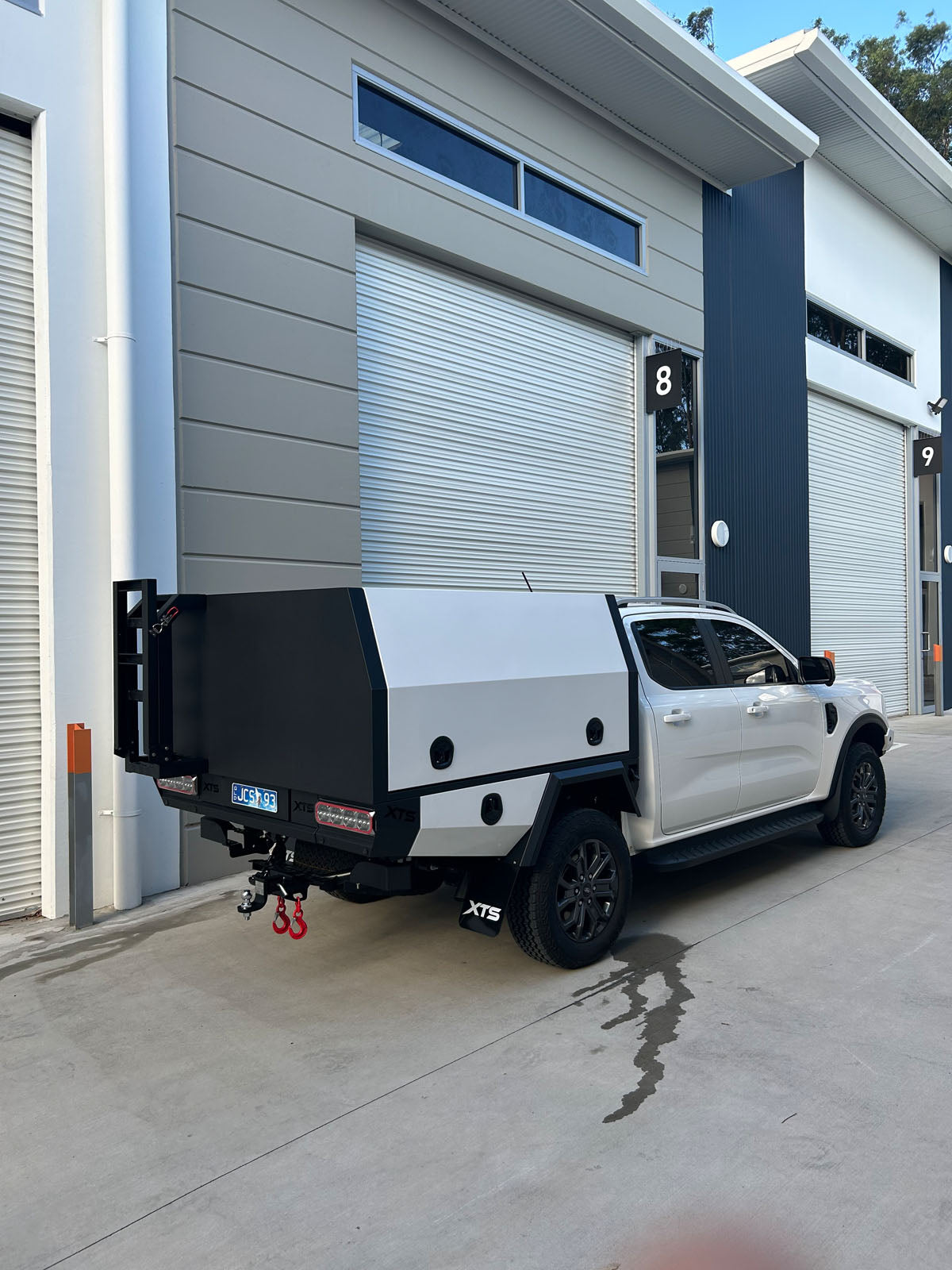

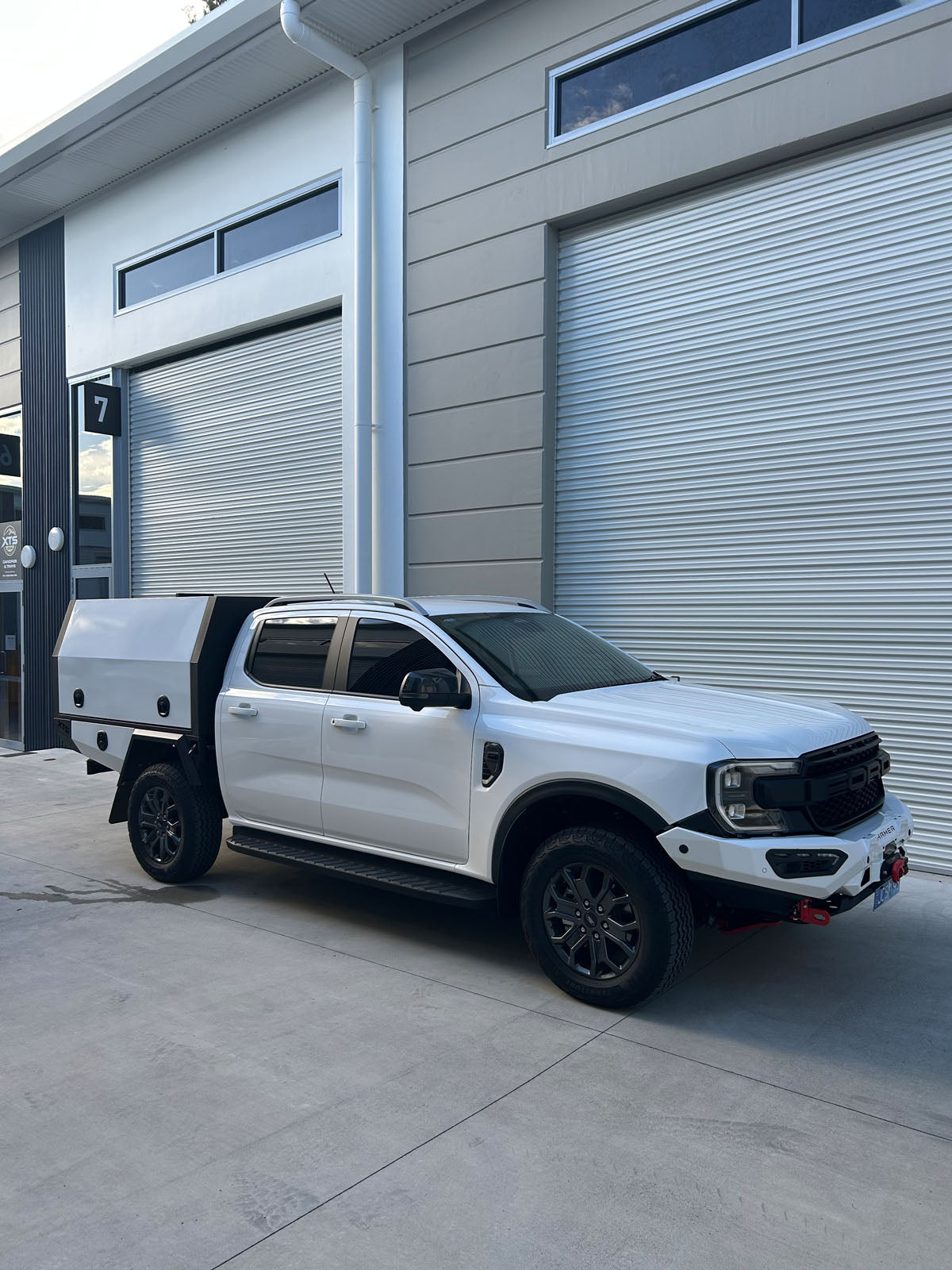

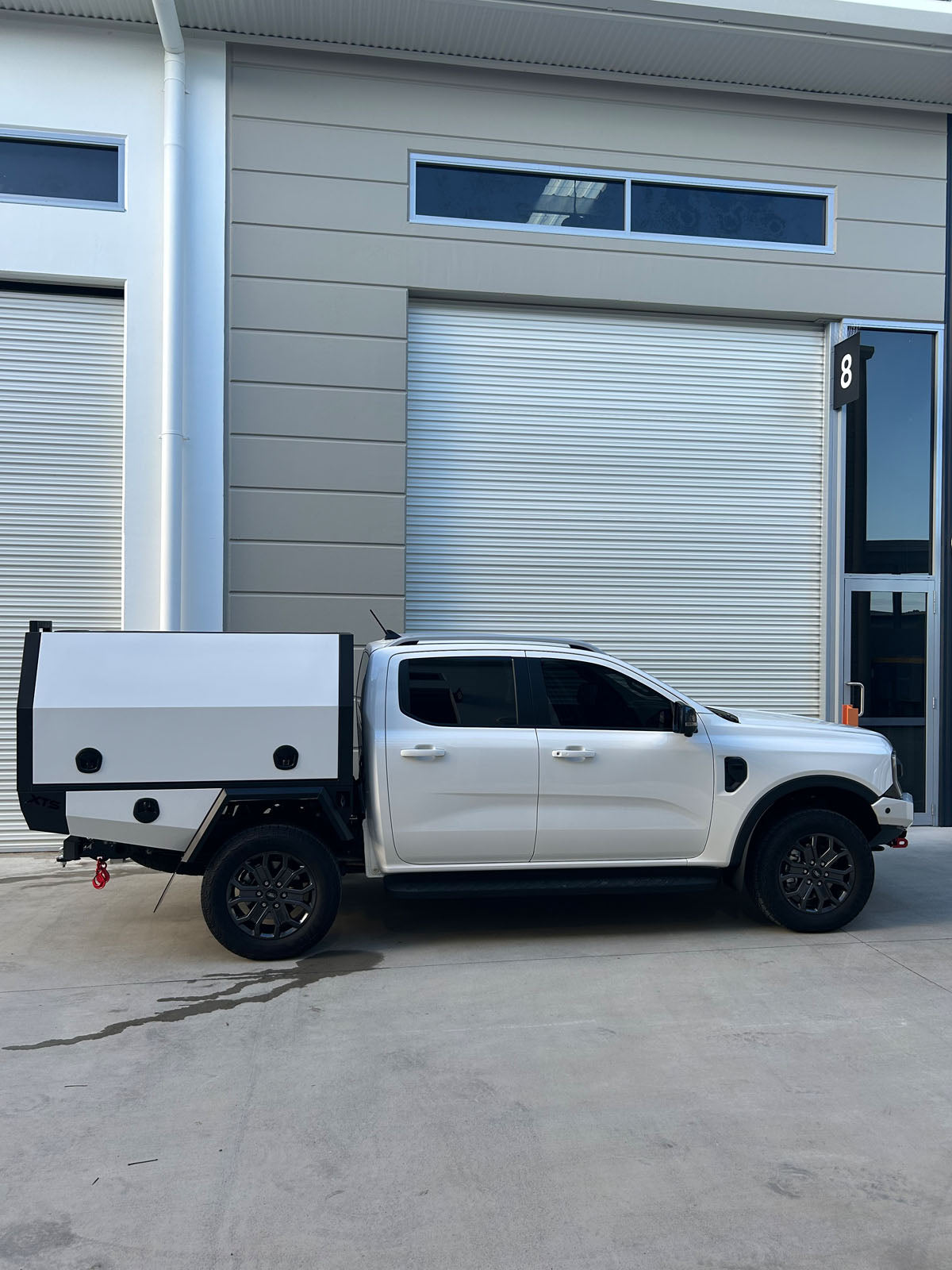

2025 Ford RANGER Wildtrak
